Cabinet

Cabinet Header

Cabinet

VOLK develops and manufactures all types
of system cabinet for Army, Navy, Air Force.

Army, navy, air force, etc. Cabinet description used in the army Description Slide

  • Military Cabinet
    Military Cabinet

    #L-SAM #TICN

  • Submarine Cabinet
    Submarine Cabinet

    #Jangbogo-Ⅱ #Jangbogo-Ⅲ

  • Vessel Cabinet
    Vessel Cabinet

    #FFX-lll #KDDX #PKX-B #LPH #KDX-l #FRIGATE

Capability

Design, Simulation, Device analysis, Vibration analysis, Analysis of heat flow, Harness design, H/W design and fabrication

Cabinet type and specification

Types and SPECS

Turn-key manufacturing capacity for all types and steps of cabinet used in the Army, Navy, Air Force

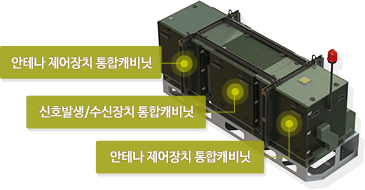

Antenna Integrated Cabinet

Equipment Applied Quick View

Equipment Applied Antenna integrated cabinet image
  • - Cabinet housing
  • - Development of internal and external interlocking system
  • - Interlocking of internal and external HVAC system
  • - MIL-STD Qualified(temperature/ humidity, vibration, shock etc.)

Ex(Related case): Long-Surface-to-Air Missile

Close

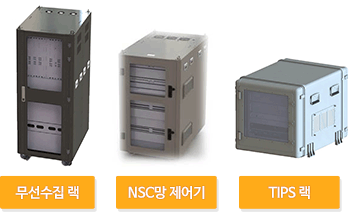

Integrated Cabinet for Communication

Equipment Applied Quick View

Equipment Applied Integrated cabinet image for communication
  • - Interlocking with external equipment
  • - Providing combat system database
  • Image distribution, recording, storing, sonar wave storing and analysis

Ex(Related case): TICN(Tactical Information Communication Network)

Close
System Cabinet for Combat System

Equipment Applied Quick View

Equipment Applied Combat System Cabinet Image
  • - Interlocking with external equipment
  • - Providing combat system database
  • Image distribution, recording, storing, sonar wave storing and analysis

Ex(Related case) : #FFX-III #KDDX

Close

Console

Console Header

Console

Communicate and deliver information to execute command from operator

Console Features and Functions

  • Communicate and deliver information to execute command from operator Vibration and Shock Mitigation Function

    High Temperature, Shock, Vibration,
    MIL SPEC Certified for EMI/EMC

  • Lightweight Lightweight

    Lightweight product with carbon
    Fiber Reinforced Plastics(CFRP)

  • Application Function Application Function

    Command and Control, Weapon Assignment,
    Wartime and System Control Ect.

Development COMPETENCE

Console Development Competency tab (list)

Mission Control Device Description

Mission Control Device
Mission Control Device(Carbon Fiber Naval Console)

MIL-STD Qualified

Mission Control Device Detail Spec Table
icon Explanation
Console Specifications Icon Temperature/Humidity (MIL-STD-810G)
Console Specifications Icon Shock (MIL-STD-901D)
Console Specifications Icon Vibration (MIL-STD-167-1, Type1)
Console Specifications Icon Electromagnetic Wave(EMI/EMC)(MIL-STD-461F)
Console Specifications Icon KS C IEC 60529:2006
  • Size : 600 x 750 x 1800
  • Console Housing
  • 4 Display 24”x2, 10.4”, 3”
  • Track Ball/Keyboard
  • Isolator Mounting
  • Main material : CFRP
    (Carbon Fiber Reinforced Plastic)

KSS-III System Simulator Multifunction Console Description

KSS-III System Simulator Multi-function Console
KSS-III System Simulator Multi-function Console

MIL-STD Qualified

KSS-III system simulator multifunction console detailed specification table
icon Explanation
Console Specifications Icon Temperature/Humidity (MIL-STD-810G)
Console Specifications Icon Shock (MIL-STD-901D)
Console Specifications Icon Vibration (MIL-STD-167-1, Type1)
Console Specifications Icon Electromagnetic Wave (EMI/EMC) (MIL-STD-461F)

- Based on network or autonomous composition

- Transmission-available between system, platform and programs

  • Console Housing
  • 3 Display 20.1”, 8.4”
  • Joysticks/Track Ball/Keyboard
  • Isolator Mounting

ECDIS System Description

ECDIS System
ECDIS System

MIL-STD Qualified

ECDIS System detailed specification table
icon Explanation
Console Specifications Icon Vibration (MIL-STD-167)
Console Specifications Icon Electromagnetic Wave (EMI/EMC) (MIL-STD-461)
Console Specifications Icon Environment/reliability (MIL-STD-810)

- Based on network or autonomous composition

- Transmission-available between system, platform and programs

  • Console Housing
  • 5 Display 32, 20.1”
  • Track Ball/Keyboard
  • Isolator Mounting

Multi-robot integrated command control system description

Multiple Robot Integrated Control System
Multiple Robot Integrated Control System

MIL-STD Qualified

Multi-robot integrated command and control system detailed specification table
icon Explanation
Console Specifications Icon Temperature/Humidity (MIL-STD-810G)
Console Specifications Icon Shock (MIL-STD-901D)
Console Specifications Icon Vibration (MIL-STD-167-1, Type1)
Console Specifications Icon Electromagnetic Wave (EMI/EMC) (MIL-STD-461-F)
  • 19” Commercial Rack Mount
  • on-board 20.1” Rugged lcd
  • Rugged Design

CDS System Console Description

CDS System Console
CDS System Console

MIL-STD Qualified

CDS System Console detailed specification table
icon Explanation
Console Specifications Icon Shock (MIL-STD-901D)
Console Specifications Icon Vibration (MIL-STD-167)
Console Specifications Icon Electromagnetic Wave (EMI/EMC) (MIL-STD-461)
Console Specifications Icon Environment/reliability (MIL-STD-810)

- Based on network or autonomous composition

- Transmission-available between system, platform and programs

  • Console Housing
  • 2 Display 20.1”
  • Joysticks/Track Ball/Keyboard
  • Isolator Mounting

Engine Control System Console Description

Engine Control System Console
Engine Control System Console

MIL-STD Qualified

Engine Control System Console Specification Table
icon Explanation
Console Specifications Icon Shock (MIL-STD-901D)
Console Specifications Icon Vibration (MIL-STD-167)
Console Specifications Icon Electromagnetic Wave (EMI/EMC) (MIL-STD-461)
Console Specifications Icon Environment/reliability (MIL-STD-810)

- Based on network or autonomous composition

- Transmission-available between system, platform and programs

  • Console Housing
  • 2 Display 20.1”
  • Joysticks/Track Ball/Keyboard
  • Isolator Mounting
